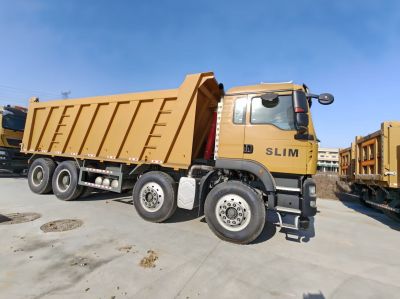

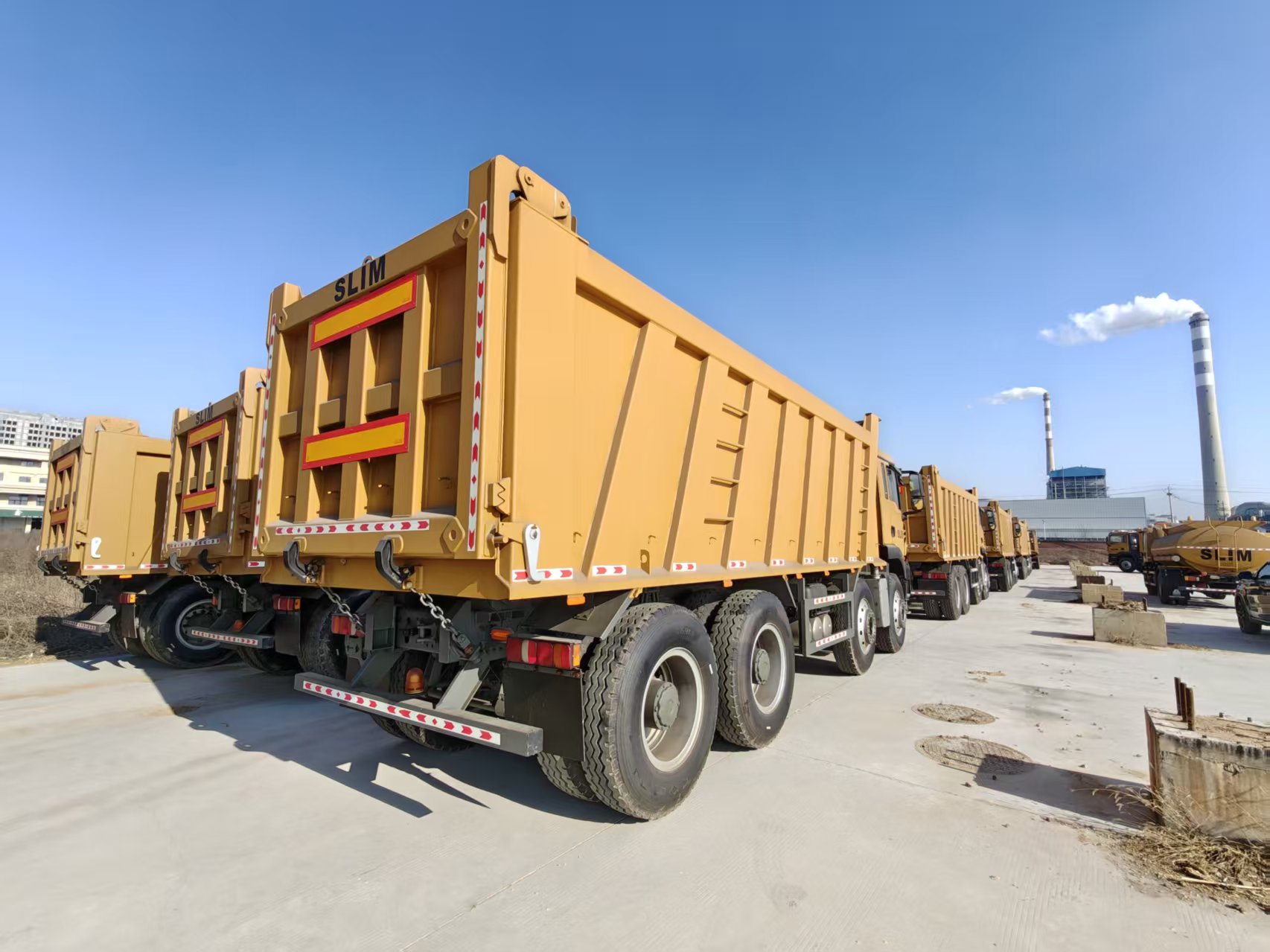

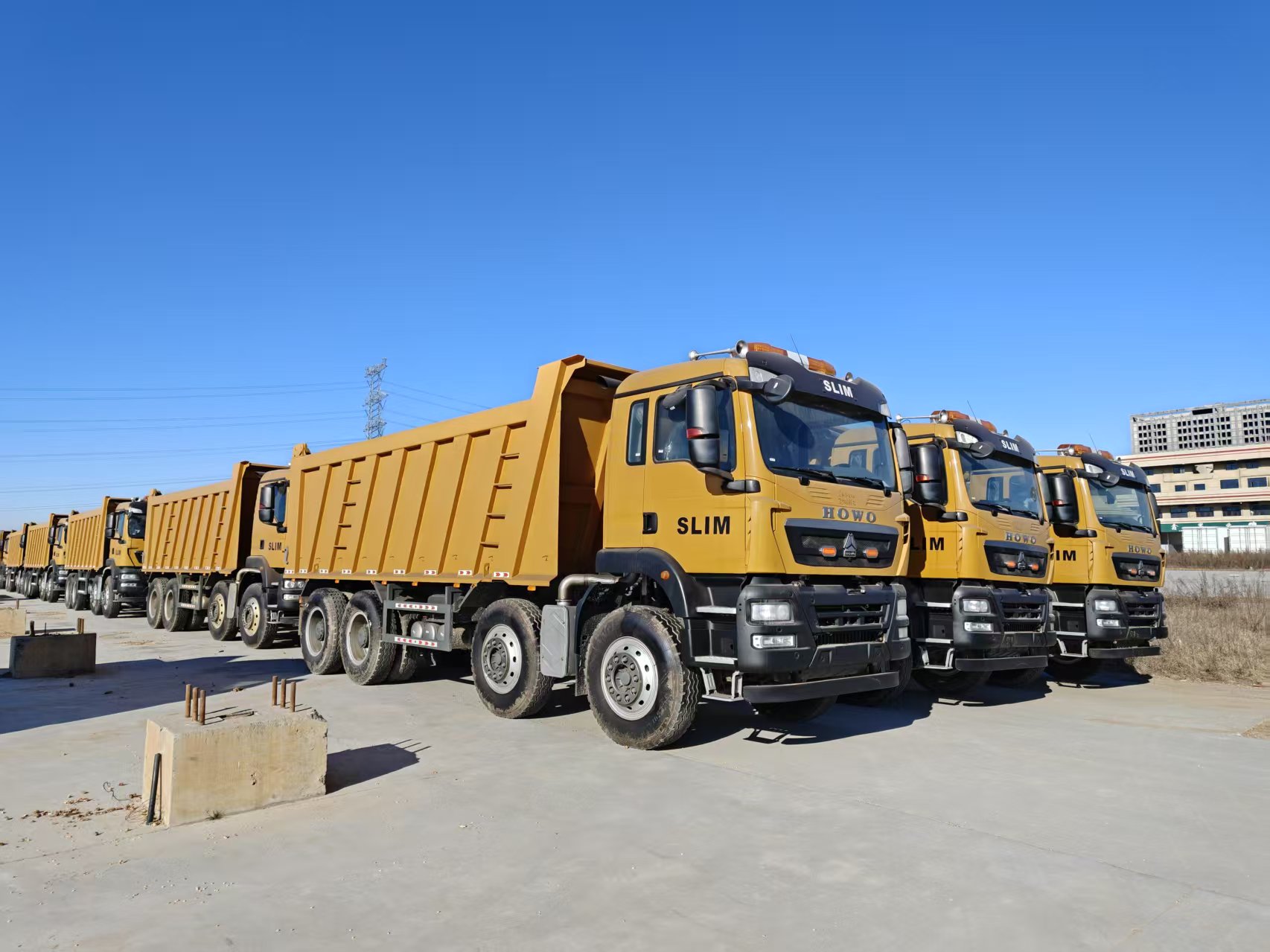

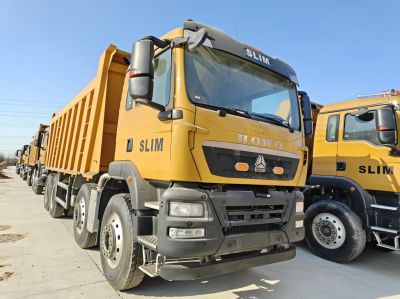

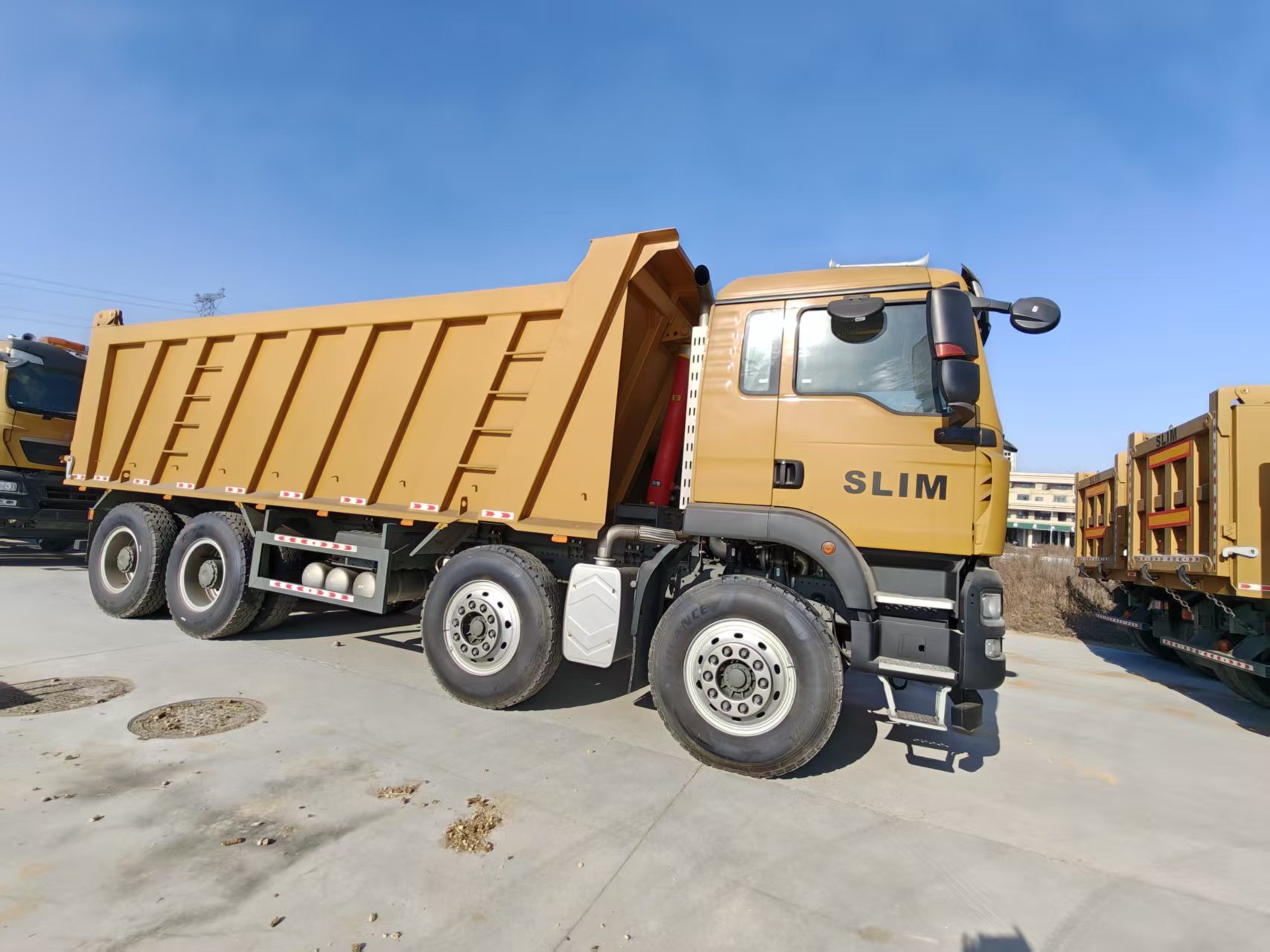

| HOWO-TX8×4Tipper | ||||
| ZZ3317V326GC1 | ||||
| Dimensionalparameters（mm) | ||||
| Length：10160 | Width：2548 | Height：3450 | Wheelbase:1800+3200+1470 | |
| Qualityparameters（kg) | ||||
| GVW：51000 | Curbweight：15500 | GCW： | ||
| Cab | ||||
| Model：TX-M | Steeringwheelposition：Left | Cabfeatures：DayCab | ||
| Engine | ||||
| Model：MC13.48-30 | Emissionlevel：EuroIII | Displacement（L）：12.419 | ||
| Ratedpower/speed：480hp@1900rpm | Maximumtorque：2300Nm@1050~1350rpm | |||
| Gearbox | ||||
| Model：ZF16S2530TO | Type：MT | Maximuminputtorque：2500Nm | ||
| Gears：16F2R | Gearratio： | 13.8,11.54,9.49,7.93,6.53,5.46,4.57,3.82,3.02,2.53,2.08,1.74, 1.43,1.2,1,0.84;12.92(R1),10.8(R2） | ||
| Frontaxle | ||||
| Model：VGD95 | Ratedaxleload：2x9500kg | Brakeform：Drum | ||
| Driveaxle | ||||
| Model：MCP16ZG | Gearratio：5.92 | Ratedaxleload：2x16000kg | ||
| Type：Drivingaxle | Axleshellform：Casting | Brakeform：Drum | ||
| Otherconfigurations： | ||||
| Suspension：Leafspring | Frame：8+8/300 | Fueltankvolume：400L | ||
| Wheels：12+1 | Tiremodel：12.00R24 | Steeringgear：Bosch | ||
| ABS：4S/4M | Airintakesystem：Off-Roadtype | Exhaustsystem：Lowposition | ||
| Fifthwheel：N/A | Entertainment：7inch | Rotatingbeacons：2onthecabin | ||
| Otherconfigurations： | ||||
| Lifting：Front | Dimension：6500x2300x1500mm | Metal：floorHARDOX10mm,sideQ3458mm | ||
